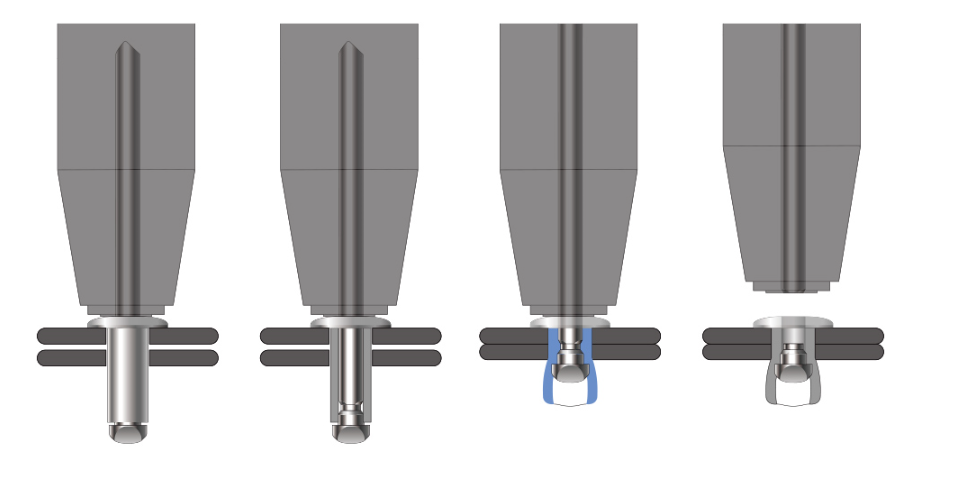

Installation Sequence
The standard blind rivet consists of two components,a rivet body and mandrel.
A.The rivet is first placed into an installation tool and is then inserted into the application.
B.Activating the tool pulls the rivet’s mandrel, drawing the mandrel head into the blind-end of the rivet
body. This action forms an upset head on the rivet body and securely clamps the application materiak together.
C.Finally,the mandrel reaches its predetermined break-load,with the spent portien of the mandrel
breaking away and being removed from the set rivet.
Fast,easy-to use blind rivets offer speed of assembly. consistent mechanical performance and excellent installed appearance,making blind riveting a reliable and cconomica assembly method

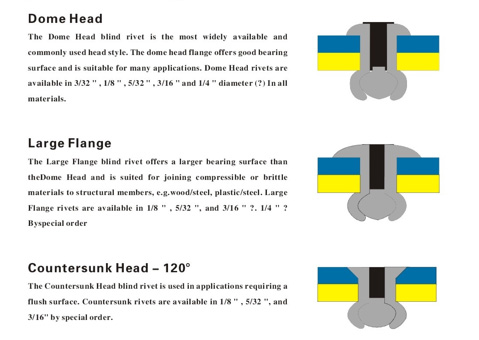

Dome Head
The Dome Head blind rivet is the most widely available and commonly used head sty le. The dome head Nange offers good bearing surface and is saitable for many applications. Dome Head rivets are available in 3/32″.1/8″5/32″3/16″and 1/4″diameter(?)In all materials.
Large Flange
The Large Flange blind rivet offers a larger bearing surface than theDome Head and is suited for joining compressible or brittle materias to structural members.e…wood/steel,plastic/steel.Large Flange rivets are available in 1/8″5/32*.and 3/167.1/4″? Byspecial order
CountersunkHead-120°
The Countersunk Head blind rivet is used in applications requiring a Nush surface.Countersunk rivete are arailable in 1/8- 5/32″and3/16″by special order.
